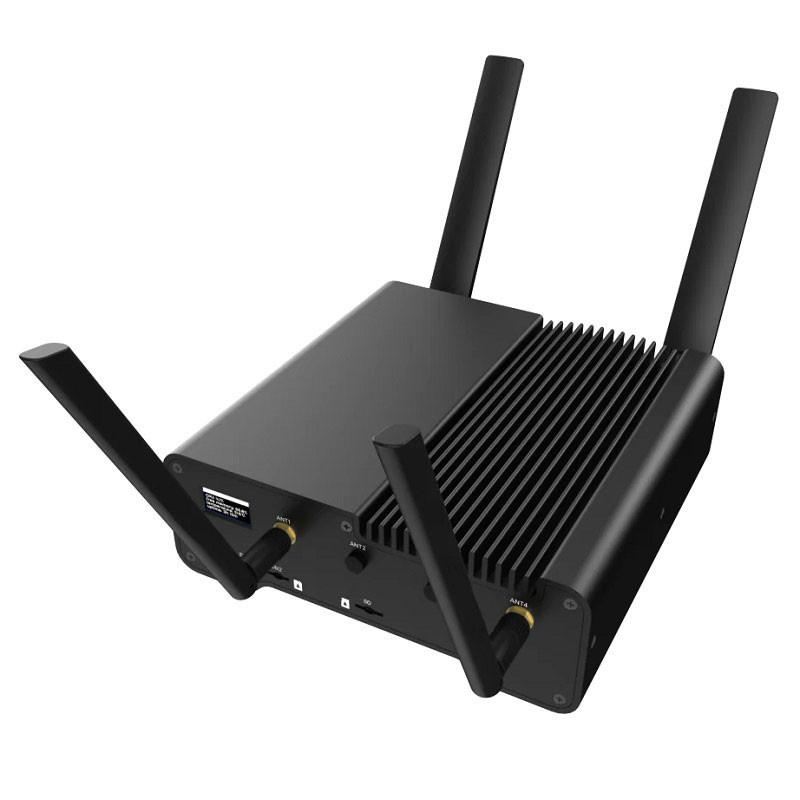

The Hybrid mioty® and LoRaWAN® Gateway Based on CM4 supports both mioty and LoRaWAN® protocols. It connects via Ethernet, Wi-Fi, or optional LTE, offering flexible backhaul options. Built with an industrial-grade enclosure, it ensures reliable performance in harsh environments. This gateway is ideal for urban and industrial IoT deployments, supporting long-range communication for both Mioty and LoRaWAN® networks.
Note: At the moment, we only offer the 868MHz MiOty band. Please contact us if you need a different band.
The Hybrid mioty® and LoRaWAN® Gateway is built on the Raspberry Pi CM4, offering Mioty support alongside and LoRaWAN module for a true Dual Protocol gateway. Powered by the latest SX1303 LoRa core, it improves sensitivity and performance. It also supports multi-backhaul options, such as Ethernet, Wi-Fi, and optional Cellular connectivity.
Mioty, based on Fraunhofer IIS's patented Telegram Splitting technology, divides messages into multiple sub-packets transmitted at different times and frequencies with low time on air (ToA), reducing interference and enabling low Packet Error Rates (PER) and high network capacity.
What is the difference between Mioty and LoRaWAN?
Mioty and LoRaWAN are both LPWAN (Low-Power, Wide-Area Network) protocols, but they have distinct differences:
mioty uses Telegram Splitting technology, which splits messages into sub-packets and transmits them over multiple frequencies and times. This reduces interference and ensures robust communication in dense environments. LoRa uses chirp spread spectrum modulation, which is effective for long-range communication but may face more interference in dense networks.
How do I utilize the features of WisGate Connect for MiOty in my deployment?
Multi-Protocol Support: Leverage the Mini PCIe and M.2 slots to integrate additional radio modules as needed.
Flexible Power Options: Choose the power supply method that best fits your deployment scenario, whether it's direct DC input or PoE+.
Backhaul Connectivity: Configure the gateway to use the most reliable backhaul option available, ensuring consistent data transmission.
Features:
Dual Protocol Gateway – Supports both MiOty and LoRaWAN® technologies.
Improved Sensitivity – Enhanced signal reception with the SX1303 LoRa core.
Multi-Backhaul Options – Connect via Ethernet, Wi-Fi, or optional Cellular.
Better Antenna Performance – Antennas extend outside the enclosure for superior signal strength.
Pre-Flashed with RAKPiOS – Comes with RAKPiOS and a convenient utility for configuration.
Key Features of WisGate Connect for Mioty
Hardware
Industrial-grade enclosure
Accepts the complete range of CM4 module options:
CM4102016: 2GB RAM+16GB eMMC+WIFI
CM4104032: 4GB RAM+32GB eMMC+WIFI
Supports 9-28VDC (barrel jack or Phoenix terminal). If POE is needed, Pls send a message to sales@dwmzone.com.
Mioty Base Station support
8 channels subGHz LoRa concentrator RAK5146.
Backhaul: Wi-Fi, Ethernet, and LTE (EG95-E,EG95-NA optionals)
SMA connectors for MiOty, LoRa, Wi-Fi, and LTE antennas
1x Gigabit Ethernet port with PoE support (optional)
1x 2.5 Gigabit Ethernet
1x USB2.0 + 2x USB3.0
Dying gasp
Key Benefits of WisGate Connect for Mioty
A robust and flexible gateway designed for reliable, long-range IoT deployments with mioty and LoRaWAN® support.
Dual Protocol Support – Enables both MiOty and LoRaWAN® connectivity for versatile IoT applications.
Reliable Multi-Backhaul – Connect via Ethernet, Wi-Fi, or optional LTE for stable network coverage.
Industrial-Grade Design – Durable enclosure with multiple antenna options for optimal signal performance.
Use Case #1
Deploy a Hybrid mioty® and LoRaWAN® Gateway for Mioty in industrial settings to monitor machinery and environmental conditions. Its robust dual-protocol support ensures reliable data transmission even in interference-prone environments.
Use Case #2
Use the Hybrid mioty® and LoRaWAN® Gateway for Mioty to manage urban infrastructure, such as smart lighting and waste management systems. Its long-range capabilities and scalability make it ideal for city-wide deployments.
Package Inclusions
1 pc WisGate Connect for Mioty
1 pc 12V2A power supply
1 pc Phoenix male connector
1 pc LoRa Antenna
2 pcs LTE Antenna (If you select With LTE)
Set of standoffs and screws to protect the board
