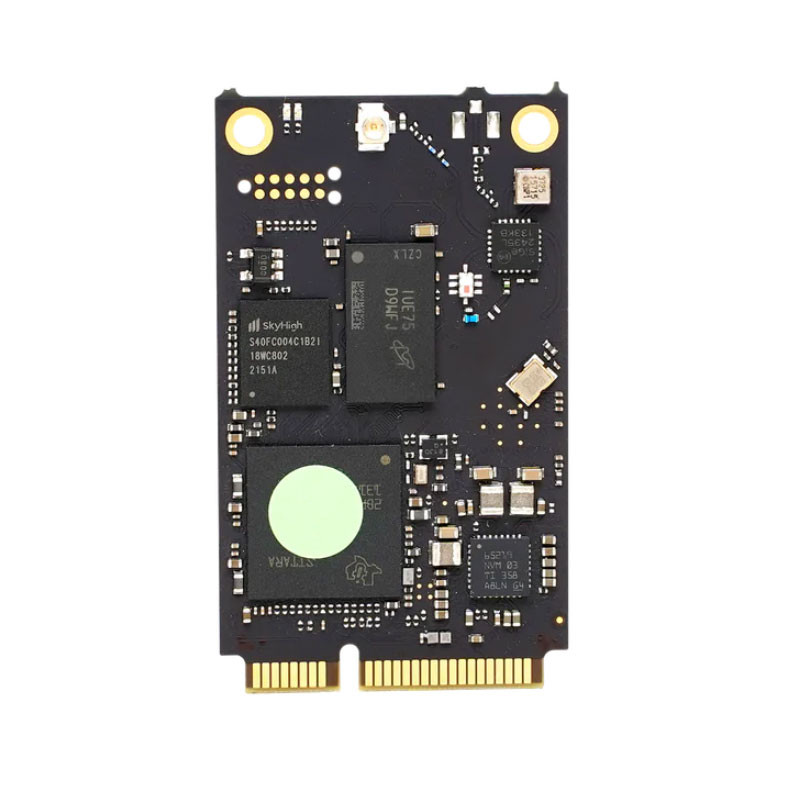

PCIE-M.2 Mioty® 868 MHz Miro Edge Card on Mini PCIe

ODL25042503

PCIE-M.2 Mioty® 868 MHz Miro Edge Card on Mini PCIe, which can work with the RAK7391 IOT LoRaWAN Gateway Carrier Board MiniPCIe Slot #1, Slot #2, Slot #3.

$234.00
Tax excluded
Quantity

Description

The Miro Edge Card mPCIe Mioty® Base Station Card (GWC-62-MY-868) by Miromico is a full System-on-Module (SOM) that provides a plug-and-play solution for long-range and low-power wireless communication networks based on the Mioty® standard. It comes in a MiniPCIe form factor, exposing a network interface over a USB 2.0 communication device class (CDC) to interface the Mioty® Base Station Service Center Interface (BSSCI) data to a host processor.

The card is based on a high-performance Sitara processor running the Mioty® base station core library and implementing software-defined radio (SDR). The card embeds an RF frontend with an integrated Low Noise Amplifier (LNA), reaching a sensitivity of down to -136 dBm, and a Power Amplifier (PA), allowing a transmit output power of up to +27 dBm.

The Miro EdgeCard Mioty® is fully compatible with the WisGate Connect gateway, and a helper setup script is available in the latest RAKPiOS versions.

Features

Full Mioty® base station on Mini PCIe card

ISM 868 MHz frequency band

Direct Mioty® BSSCI interface

Up to 3.5M telegrams per day

Sub-GHz RF I/Q frontend

TX power up to 27 dBm

High sensitivity down to -136 dBm

Fully Mini PCIe compliant card using USB CDC

Useful Link:

Hardware Compatibility

WisGate Connect documentation

RAKPiOS OS

Python examples for the RAK7391

Node-RED examples for the RAK7391

Product Details
ODL25042503
300 Items
