Product Description

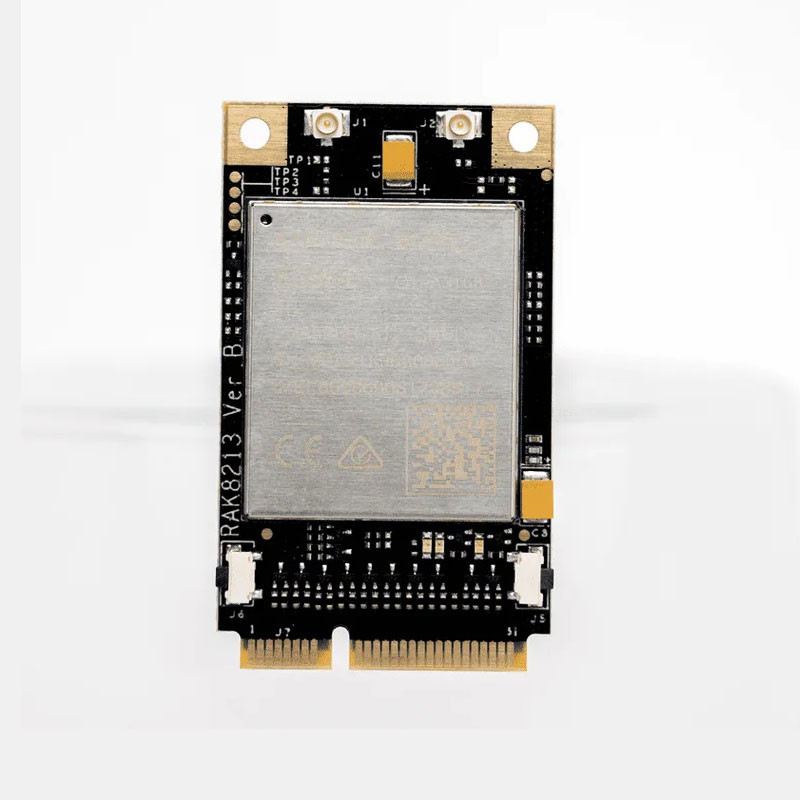

PCIE-M.2 EG95 NB-IOT LTE Cellular Module based on the Quectel EG95 with a standard PCI Express® form factor (Mini PCIe). It offers a maximum data rate of 375 Kbps downlink and 375 Kbps uplink. based on the Quectel EG95 with a standard PCI Express® form factor (Mini PCIe). It offers a maximum data rate of 375 Kbps downlink and 375 Kbps uplink.
RAK8213 is a built-in GNSS module can supports GPS, GLONASS, BeiDou/Compass, Galileo, QZSS, integrates GNSS, greatly simplifying product design, and provides faster, more accurate, and more reliable positioning.
Rich Internet protocol, industry-standard interfaces (USB/UART/I2C/Status indicators) and rich features (applicable to Windows XP, Windows Vista, Windows 7/8/8.1/10, Linux drivers for Linux and Android) Modules that extend applicability are suitable for a wide range of M2M applications such as wireless POS, smart metering, and tracking.
Key Features
LTE Cat. M1/Cat.NB1/EGPRS module with Mini PCIe form factor, optimized for M2M and IoT applications.
Ultra-low power consumption.
USB Drivers support a 2.0 high-speed interface.
Quectel Enhanced AT commands.
Feature refinements: supports DFOTA, VoLTE.
Easy migration from Quectel GSM/GPRS, UMTS/HSPA, and LTE modules.
Robust mounting and interfaces
PCM interface available for VOLTE
LTE Radio Specifications
|
EG95-E for EMEA Region
|
LTE FDD: B1/B3/B7/B8/B20/B28A
WCDMA: B1/B8
GSM/EDGE: B3/B8
|
|
EG95-NA for the North America Region
|
LTE FDD: B2/B4/B5/B12/B13
WCDMA: B2/B4/B5
Optional supports other PCIE LTE module for the Global Region
|
|
|
|
Applications
M2M and IoT applications
Tracker application
Product Details
Product Dimensions: 51mm x 30mm x 4.9mm (± 0.2mm)
Product Weight: 8.9g
Package Inclusions
1x EG95 LTE module
1x iPEX LTE Antenna
1x iPEX GPS Antenna
1x SIM Card
