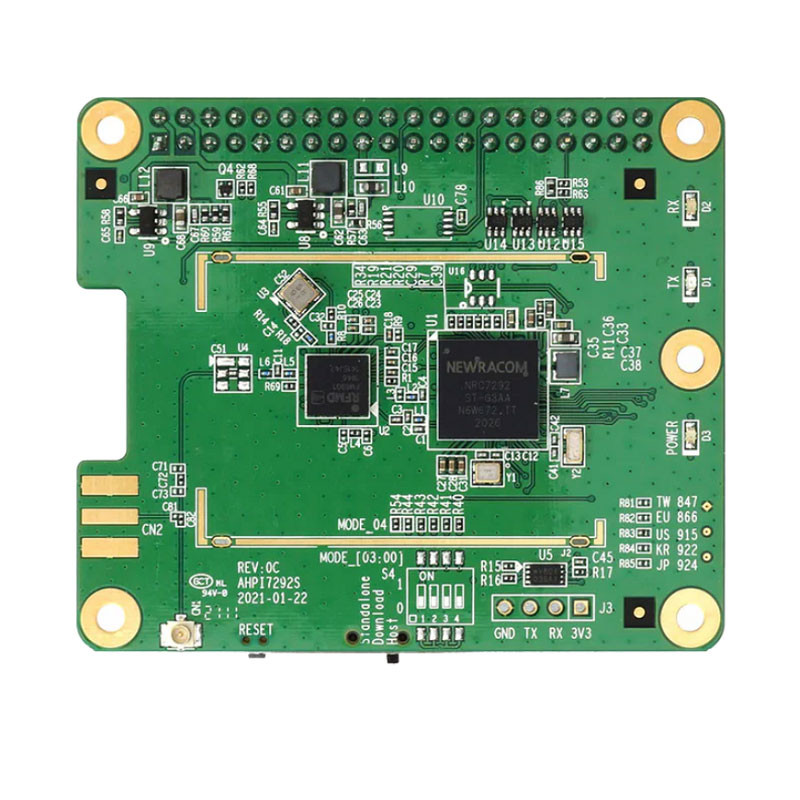

The AHPI7292S module allows building long-range, ultra-low power Wi-Fi networks in sub-1 GHz license-exempt bands, utilizing the very popular Pi Hat form factor. WiFi HaLow™ enables connectivity for many applications, including sensors and wearables.
Features
IEEE 802.11ah sub 1 GHz module
Newracom™ NRC7292 WiFi HaLow™ SoC (IEEE 802.11ah draft 8.0 compliant).
Qorvo™ RFFM6901 front-end
IPEX/U.FL antenna connector
DIP switch for mode select and a connector for UART
Raspberry Pi™ HAT form factor with a 40-pin GPIO connector
3×LEDs
Note: This module uses the I2C interface by default.
Order Info:
868MHz: 863MHz-868MHz
915MHz,923MHz: 902MHz-928MHz
