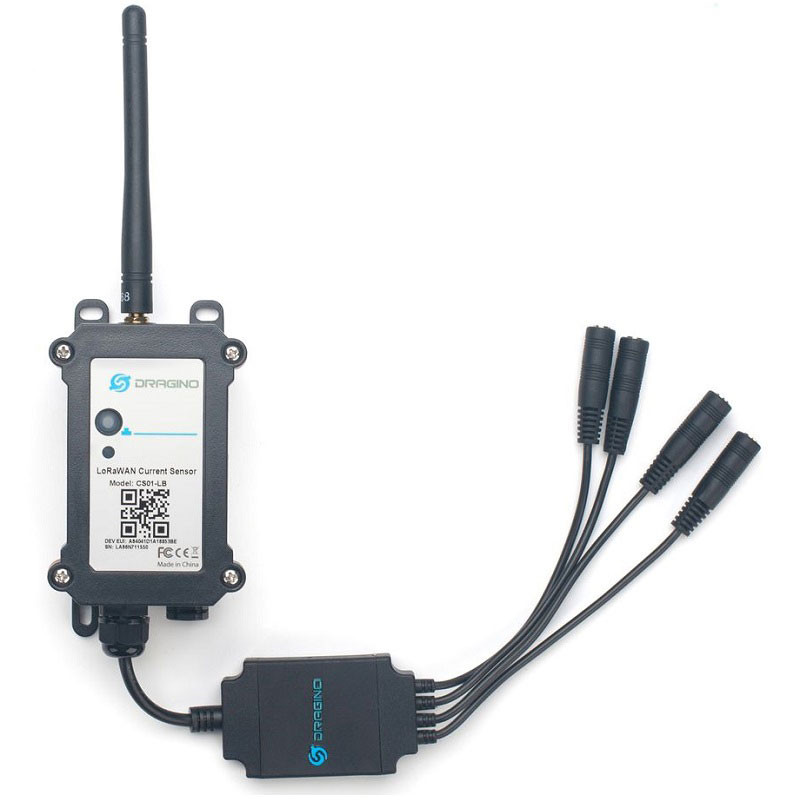

CS01-LB LoRaWAN 4 Channels Current Sensor

ODL25062901

The CS01-LB is a 4-channel current Sensor Converter. It can convert the reading from the current sensors and upload it to the IoT server via the LoRaWAN Network. It can be used to monitor the machine's running status and analyze power consumption trends.

Center frequency
Type
$99.00
Tax excluded
Quantity

Description

The CS01-LB is a 4-channel current Sensor Converter. It can convert the reading from the current sensors and upload it to the IoT server via the LoRaWAN Network.

CS01-LB can be used to monitor the machine's running status and analyze power consumption trends.

The CS01-LB supports a maximum of 4 current sensors. The current sensors are detachable and can be replaced with different scales.

CS01-LB supports BLE con­figure and wireless OTA update, which makes user easy to use.

CS01-LB is powered by an 8500mAh Li-SOCI2 battery, and it is designed for long-term use up to several years.

Features:

LoRaWAN 1.0.3 Class A

Bands:CN470/EU433/KR920/US915/EU868/AS923/AU915/IN865

Ultra-low power consumption

Supports a maximum of 4 current sensors

Support various current sensor Ratio: 100A/50mA, 300A/50mA, 600A/50mA

Monitor the machine's running status

Analyze power consumption trends

Current Alarm

Uplink on periodically

Downlink to change the configuration

Support BLE and LoRaWAN remote configuration

Support wireless OTA update firmware

8500mAh Li/SOCl2 Battery

Specification:

Common DC Characteristics:

Supply Voltage: Built-in Battery, 2.5V ~ 3.6V

Operating Temperature: -40 ~ 85°C

Current Sensor Spec:

SCT013G-D-100:

Split-core current transformer

Spec: 100A/50mA

φ16mm Aperture

SCT024-300:

Split-core current transformer

Spec: 300A/50mA

φ24mm Aperture

SCT036-600:

Split-core current transformer

Spec: 600A/50mA

φ36mm Aperture

LoRa Spec:

Frequency Range,  Band 1 (HF): 862 ~ 1020 MHz

Max +22 dBm constant RF output vs.

RX sensitivity: down to -139 dBm.

Excellent blocking immunity

Battery:

Li/SOCI2 un-chargeable battery

Capacity: 8500mAh

Self-Discharge: <1% / Year @ 25°C

Max continuous current: 130mA

Max boost current: 2A, 1 second

Power Consumption:

Sleep Mode: 5uA @ 3.3v

LoRa Transmit Mode: 125mA @ 20dBm, 82mA @ 14dBm

Package Includes:

CS01-LB  LoRaWAN 4 Channels Current Sensor Converter x 1

Order Info:

Part Number: CS01-LB-XX

 XX: the default frequency band

EU433: Default frequency band EU433

CN470: Default frequency band CN470

EU868: Default frequency band EU868

IN865:  Default frequency band IN865

KR920: Default frequency band KR920

AS923: Default frequency band AS923

AU915: Default frequency band AU915

US915: Default frequency band US915

Reference Model for current sensor:

SCT013G-D-100: 100A/50mA

SCT024-300: 300A/50mA

SCT036-600: 600A/50mA

Useful Link:

Datasheet

User manual

Firmware

Product Details
ODL25062901
150 Items
