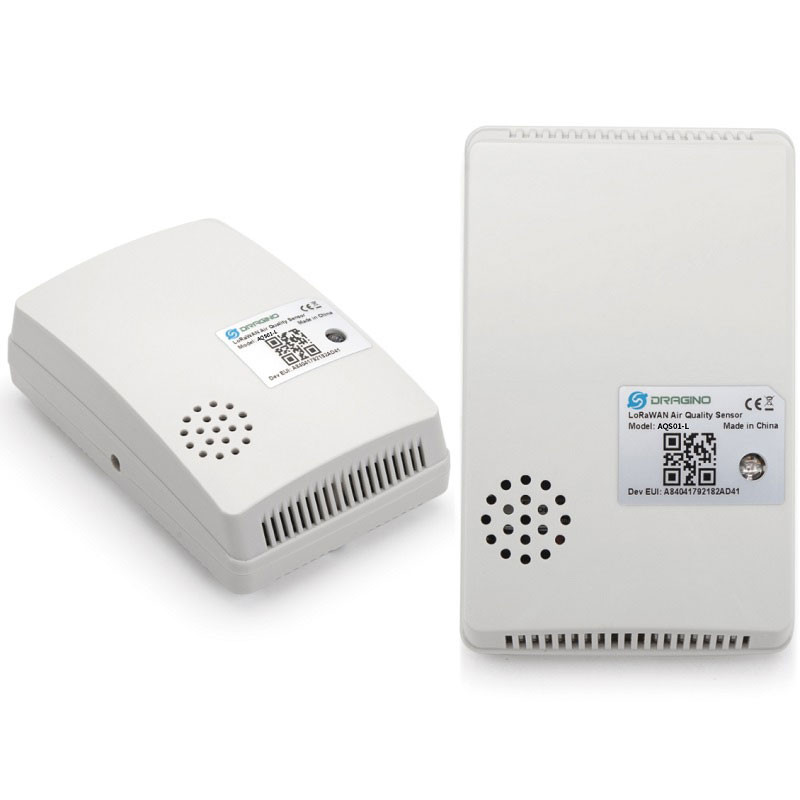

The Dragino AQS01-L is an Indoor LoRaWAN Air Quality Sensor for the Internet of Things solution. It is designed to measure the surrounding environment parameters, including CO2, Temperature, Relative Air Humidity, and Air pressure, and then upload the data to the IoT server via the LoRaWAN wireless protocol.
AQS01-L is powered by an ER18505 4000mAh battery. The battery can last more than 2 years and is easy to change.
AQS01-L supports BLE configuration and wireless OTA update, which makes it easy to use.
AQS01-L supports CO2 Alarm and Temperature Alarm* features, users can get an alarm for instant notice.
AQS01-L supports the Datalog feature, The User can retrieve the sensor data from LoRaWAN commands.
Note*: CO2 Alarm and temperature Alarm will decrease the battery life.
Features:
LoRaWAN 1.0.3 Class A
Bands: CN470/EU433/KR920/US915/EU868/AS923/AU915/IN865
Monitor CO2/Temperature/Relative Humidity/Pressure
Support CO2 alarm
Support Datalog Feature
Support Bluetooth v5.1 and LoRaWAN remote configuration
Support wireless OTA update firmware
Uplink on periodically
Downlink to change the configuration
4000mAh batteries powered
specifications:
Common DC Characteristics:
Supply Voltage: built in 4000mAh Li-SOCI2 battery , 2.5v ~ 3.6v
Operating Temperature: -20 ~ 65°C
CO2 Sensor:
Target gas: Carbon dioxide(CO2)
Operating principle: Non-dispersiveinfrared(NDIR)
Operating range: 0-50°C, 0-85% RH(non-condensing)
Measurement range: 400 ppm to 5000 ppm (extended range up to 10000 ppm )
Accuracy: Typ ±(50 ppm +3% of reading)
Pressure Compensation
Temperature Sensor:
Range: -20 ~ 65 °C
Accuracy: Typ ±1.0@ 0-65 °C
Resolution: 0.01°C
Humidity Sensor:
Range: 0 ~ 99.9% RH
Accurancy: ± 3%RH (20 ~ 80%RH)
Resolution: 0.008% RH
Long-term stability: 0.5 %RH/yr
Air Pressure:
Range: 300~1100hPa
Accuracy: ± 1.0 hPa (0-65 °C)
Resolution: 0.18Pa
Long-term stability: ±1.0 hPa/yr
LoRa Spec:
Frequency Range, Band 1 (HF): 862 ~ 1020 MHz
Max +22 dBm constant RF output vs.
RX sensitivity: down to -139 dBm.
Excellent blocking immunity
Battery:
Li/SOCI2 un-chargeable battery
Capacity: 4000mAh
Self-Discharge: <1% / Year @ 25°C
Power Consumption:
Sleep Mode: 6uA @ 3.3v
LoRa Transmit Mode: 125mA @ 20dBm, 82mA @ 14dBm
Package Includes:
1 x AQS01-L LoRaWAN CO2 Sensor
Dimensions and Weight:
Device Size: 110 x 70 x 30 mm
Device Weight: 130g
Order Info
Part Number: AQS01-L-XX
XX: the default frequency band
EU433: Default frequency band EU433
CN470: Default frequency band CN470
EU868: Default frequency band EU868
IN865: Default frequency band IN865
KR920: Default frequency band KR920
AS923: Default frequency band AS923
AU915: Default frequency band AU915
US915: Default frequency band US915
