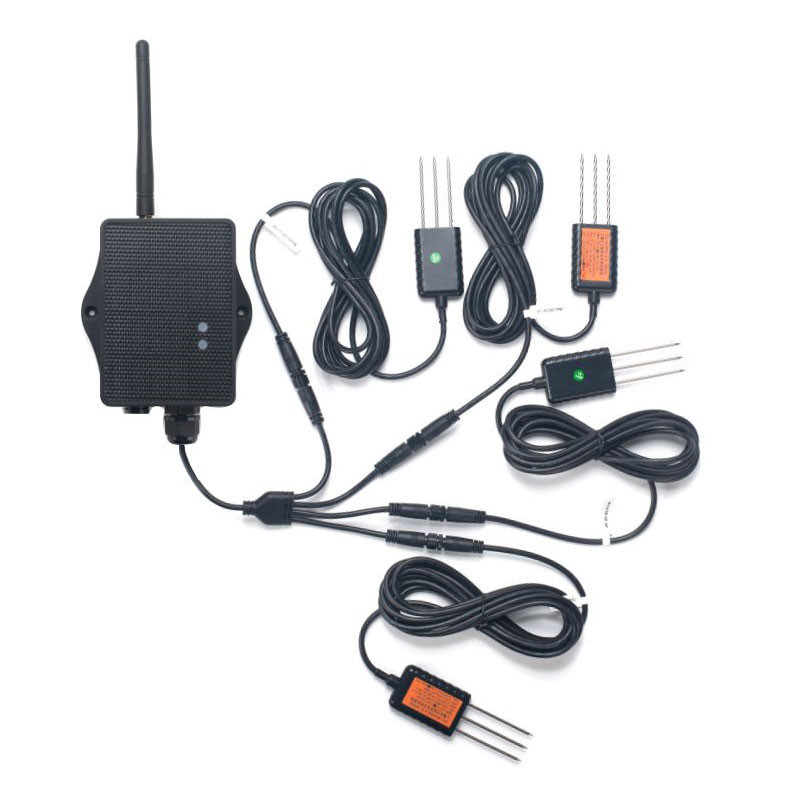

The Dragino SE0X-LS is a LoRaWAN soil moisture and EC Sensor for IoT agriculture, which can be equipped with 4 sensor probes. It is designed to measure the soil moisture of saline-alkali soil and loamy soil. The soil sensor uses the FDR method to calculate the soil moisture with compensation from soil temperature and conductivity. It has also been calibrated in the factory for Mineral soil type.
It detects Soil Moisture, Soil Temperature, and Soil Conductivity, and uploads the value via wireless to the LoRaWAN IoT Server.
The LoRa wireless technology used in SE0X-LS allows devices to send data and reach extremely long ranges at low data rates. It provides ultra-long range spread spectrum communication and high interference immunity whilst minimizing current consumption.
SE0X-LS supports BLE configuration and wireless OTA update, which makes user easy to use.
A Solar panel + 3000mAh Li-ion battery powers SE0X-LS, it is designed for long-term use up to several years.
Each SE0X-LS is pre-loaded with a set of unique keys for LoRaWAN registrations, register these keys to the local LoRaWAN server, and it will auto-connect after power on.
Features:
LoRaWAN 1.0.3 Class A
Bands: CN470/EU433/KR920/US915/EU868/AS923/AU915/IN865
Ultra-low power consumption
External 4 × sensor probes, probe length: 2.5m
Monitor Soil Moisture
Monitor Soil Temperature
Monitor Soil Conductivity
Support Bluetooth v5.1 and LoRaWAN remote configuration
Support wireless OTA update firmware
AT Commands to change parameters
Downlink to change the configuration
IP66 Waterproof Enclosure
Solar panel + 3000mAh Li-ion battery
Specification:
Common DC Characteristics:
Supply Voltage: Built-in Battery, 2.5V ~ 3.6V
Operating Temperature: -40 ~ 85°C
Soil Moisture:
Range: 0-100.00 V/V %
Resolution: 0.01 V/V %
Accuracy: ±3% (0-53%)V/V %, ±5% (>53%) V/V %
Measure Method: FDR, with temperature &EC compensation
Soil Temperature:
Range: -40.00℃～85.00℃
Resolution: 0.01℃
Accuracy: -10℃～50℃:<0.3℃ ,All other: <0.6℃
Measure Method: RTD, and calibrate
Soil Conductivity:
Range: 0-20000 uS/cm(25℃)(0-20.0EC)
Resolution: 1 uS/cm
Accuracy: 2%FS
Measure Method: Conductivity, with temperature compensation
LoRa Spec:
Frequency Range, Band 1 (HF): 862 ~ 1020 MHz
Max +22 dBm constant RF output vs.
RX sensitivity: down to -139 dBm.
Excellent blocking immunity
Battery:
Solar panel + 3000mAh Li-ion battery
Capacity: 3000mAh
Self-Discharge: <1% / Year @ 25°C
Max continuous current: 130mA
Max boost current: 2A, 1 second
Power Consumption:
Sleep Mode: 5uA @ 3.3v
LoRa Transmit Mode: 125mA @ 20dBm, 82mA @ 14dBm
Package Includes:
SE0X-LB LoRaWAN Soil Moisture & EC Sensor Transmitter
Q&A
Can I calibrate SE0X-LS to different soil types?
SE0X-LS is calibrated for saline-alkali soil and loamy soil. If users want to use it for other soil, they can calibrate the value in the IoT platform based on the value measured by saline-alkali soil and loamy soil. The formula can be found at this link.
Order Info
Part Number: SE0X-LS-XX
The SE0X-LS model does not include probes. The probe (DR-SE-6P) needs to be purchased separately.
XX: the default frequency band
EU433: Default frequency band EU433
CN470: Default frequency band CN470
EU868: Default frequency band EU868
IN865: Default frequency band IN865
KR920: Default frequency band KR920
AS923: Default frequency band AS923
AU915: Default frequency band AU915
US915: Default frequency band US915
Type: DR-SE-6P Probe Model
Number: The number of the DR-SE-6P sensor probe
